Filtros: áreas para comportas e válvulas adjacentes
Default

Input data

Flow (Q)

Superficial area (A)

Washing velocity (Ua)

Number of filters (n)

Output data

Washing flow (QL)

Inlet area to the filters (AI)

Outlet area of the filters (Ao)

Area for washing water(Apl)

Area of washing water(AL)

Description

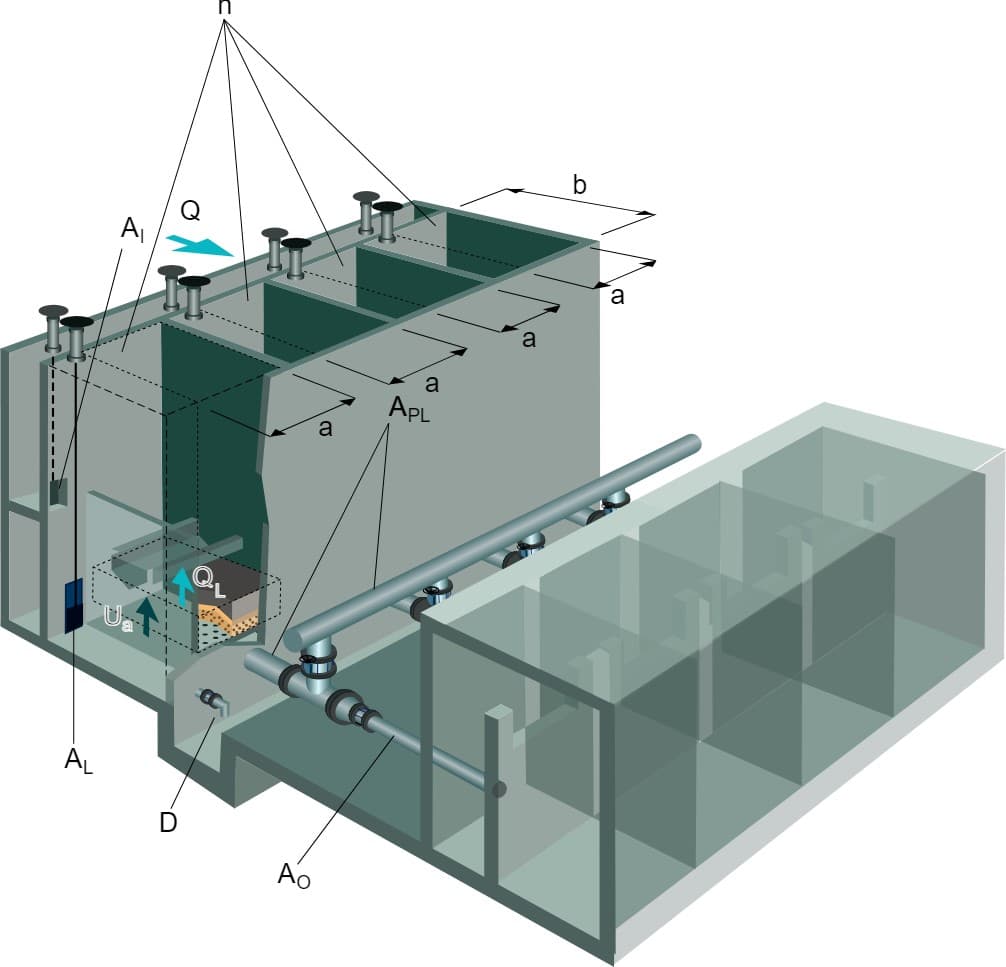

Given the flow to be filtered QQ, the number of filters nn, the superficial area (A=ab)(A = a \cdot b) of each filter and the washing velocity UaU_a, calculates the minimum reccomended areas for inlets and outlets to the filters.

Filter

Observation

  • The washing velocity must be between 0.60 and 0.95 m/min.

References

  • AZEVEDO NETTO, J. M. DE. Manual de hidráulica. 9. Ed. São Paulo, Blucher, 2015.
