Steam turbine – Work and efficiency calculation

Description

Calculate the work output of a steam turbine considering its isentropic efficiency. The turbine receives superheated steam, expands it to a lower pressure, and generates mechanical power.

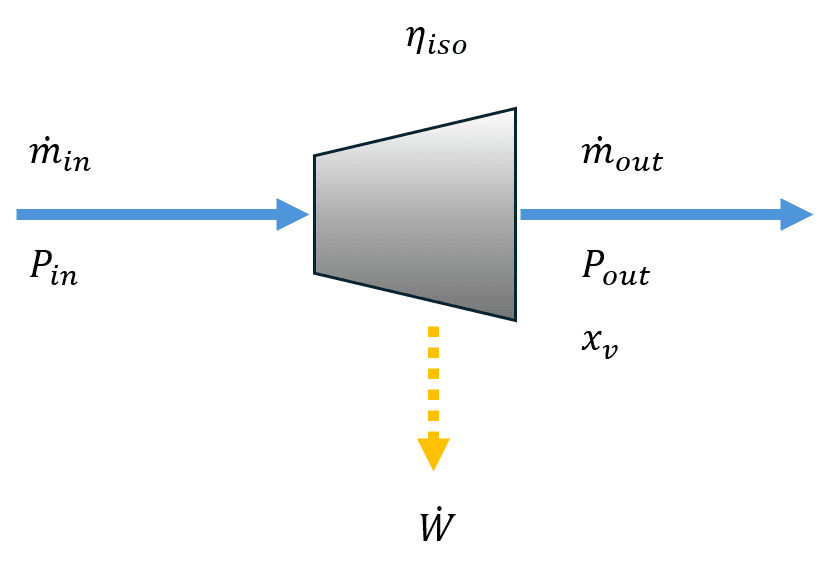

Turbine Turbine

The model is based on the First Law of Thermodynamics for steady-flow systems:

\dot{W} = \dot{m} (h_e - h_s)

where:

$\dot{m}$ : steam mass flow rate
$h_e$ : inlet steam enthalpy
$h_s$ : outlet steam enthalpy

The real work is obtained through the isentropic efficiency:

\eta_{iso} = \frac{W_{real}}{W_{isent}}

Input data

Parameter	Standard units	Description
Inlet steam mass flow	kg/s	Steam mass flow rate entering the turbine
Inlet temperature	°C	Steam temperature at turbine inlet
Inlet pressure	bar	Steam pressure at turbine inlet
Outlet pressure	bar	Steam pressure at turbine exhaust
Isentropic efficiency	%	Efficiency of the expansion process

Output data

Parameter	Standard units	Description
Outlet steam mass flow	kg/s	Steam mass flow rate leaving the turbine
Work	kW	Power developed by the turbine
Outlet vapor quality	%	Dryness fraction of the outlet steam
Outlet temperature	°C	Steam temperature at turbine exhaust

Technical notes:

Enthalpy and entropy are evaluated using thermodynamic water/steam properties.
The model assumes adiabatic expansion with negligible heat losses.
