Description

The Lapple cyclone is a widely used device for separating solid particles from gases through centrifugal force. It provides a simplified yet effective model to estimate separation efficiency, pressure drop, and power requirements in ventilation and exhaust systems.

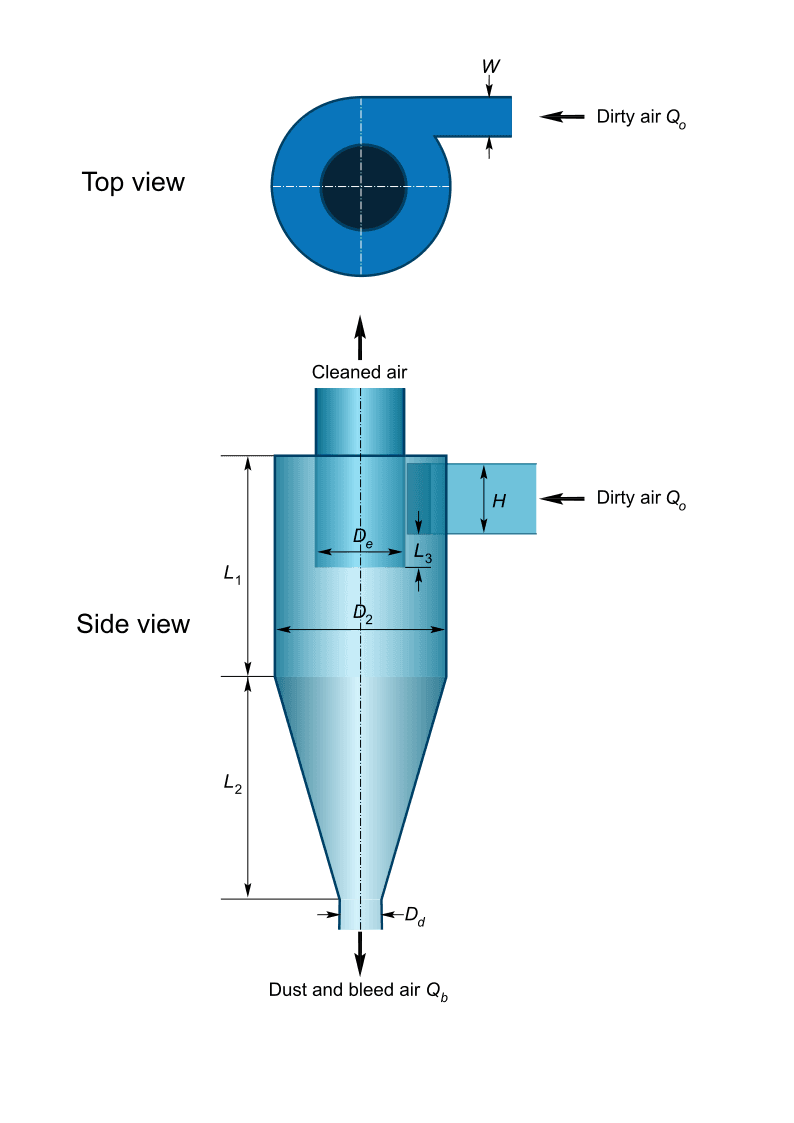

Lapple Cyclone Lapple Cyclone

Available calculation methods:

Dimensions – computes main geometric parameters, cut diameter, pressure drop, and power.
Granulometric curve – generates the grade efficiency curve as a function of particle size.
Granulometry from the cyclone diameter – calculates the outlet granulometric distribution based on the cyclone diameter.
Granulometry from the diameter cut – estimates outlet granulometric distribution using a predefined cut diameter.

Inputs and outputs of the dimension calculation

Inputs

Parameter	Default units	Description
Cyclone diameter ( $dc$ )	m	Main dimension of the cyclone
Particle density ( $\rho_p$ )	kg/m³	Solid particle density
Air flow ( $Q$ )	m³/s	Volumetric airflow
Air density ( $\rho$ )	kg/m³	Carrier fluid density
Air viscosity ( $\mu$ )	Pa·s	Dynamic viscosity of air
Blower efficiency ( $\eta$ )	%	Efficiency of the fan

Outputs

Parameter	Default units	Description
Cut diameter ( $d_p$ )	m	Particle diameter at 50% collection efficiency
Head loss ( $\Delta P$ )	Pa	Pressure drop across the cyclone
Power ( $P$ )	W	Power required for operation
L1, L2, L3	m	Characteristic heights of the cyclone
W	m	Inlet width
Dd	m	Discharge duct diameter
H	m	Cylindrical body height
De	m	Exit diameter

Description

Lapple Cyclone Lapple Cyclone

Available calculation methods:

Dimensions – computes main geometric parameters, cut diameter, pressure drop, and power.
Granulometric curve – generates the grade efficiency curve as a function of particle size.
Granulometry from the cyclone diameter – calculates the outlet granulometric distribution based on the cyclone diameter.
Granulometry from the diameter cut – estimates outlet granulometric distribution using a predefined cut diameter.

Inputs and outputs of the dimension calculation

Inputs

Parameter	Default units	Description
Cyclone diameter ( $dc$ )	m	Main dimension of the cyclone
Particle density ( $\rho_p$ )	kg/m³	Solid particle density
Air flow ( $Q$ )	m³/s	Volumetric airflow
Air density ( $\rho$ )	kg/m³	Carrier fluid density
Air viscosity ( $\mu$ )	Pa·s	Dynamic viscosity of air
Blower efficiency ( $\eta$ )	%	Efficiency of the fan

Outputs

Parameter	Default units	Description
Cut diameter ( $d_p$ )	m	Particle diameter at 50% collection efficiency
Head loss ( $\Delta P$ )	Pa	Pressure drop across the cyclone
Power ( $P$ )	W	Power required for operation
L1, L2, L3	m	Characteristic heights of the cyclone
W	m	Inlet width
Dd	m	Discharge duct diameter
H	m	Cylindrical body height
De	m	Exit diameter

References

CIMBALA, J. M. Lesson 12B: Lapple Cyclone. A Practical Application of Inertial Separation.
