Description

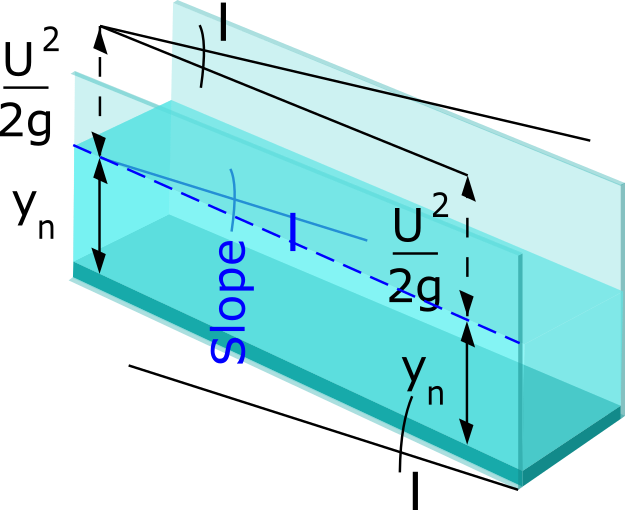

Given the basic characteristics of a rectangular channel in uniform flow, this calculation determines the normal flow depth, flow rate, roughness coefficient $n$, or slope.
Calculation modes:
- Depth (y): Given the flow rate ($Q$), width ($b$), slope ($I$), and roughness coefficient ($n$), calculates the normal flow depth and velocity.
- Flow (Q): Given the depth ($y$), width ($b$), slope ($I$), and roughness coefficient ($n$), calculates the flow rate and the $U²/2g$ relation.
- Width (b): Given the depth ($y$), flow rate ($Q$), slope ($I$), and roughness coefficient ($n$), calculates the width and the $U²/2g$ relation.
- Roughness coefficient (n): Given the depth ($y$), flow rate ($Q$), slope ($I$), and width ($b$), calculates the roughness coefficient and the $U²/2g$ relation.
- Slope (I): Given the depth ($y$), flow rate ($Q$), width ($b$), and roughness coefficient ($n$), calculates the slope and the $U²/2g$ relation.
Rectangular channel
Input and output parameters table (Depth mode):
Parameter | Standard Units | Description |
|---|---|---|
Flow ($Q$) | m³/s | Flow rate |
Width ($b$) | m | Channel width |
Slope ($I$) | - | Channel slope |
Roughness coefficient ($n$) | - | Channel roughness coefficient |
Normal flow depth ($y$) | m | Calculated normal flow depth |
Velocity ($U$) | m/s | Flow velocity |
References
- SILVESTRE, Paschoal. Hidráulica geral. Rio de Janeiro, LTC, 1979.
